S7000
| Tehnički podaci | |
|---|---|
| Dimenzije | 208mm x 130mm x 20mm (dužina x širina x debljina) |
| Težina | 500g (sa standardnom baterijom) |
| Ekran | 7 inch TFT-LCD (1024x600), touch-screen s pozadinskim osvjetljenjem |
| Tipke | 3 TP keys, 6 function keys, 4 side buttons |
| Baterija | Rechargeable li-ion polymer, 3.7V, 10000mAh |
| CPU | Cortex A7 1.3GHz, quad-core |
| OS | Android 4.4.2 |
| Memorija | 1GB RAM, 16GB ROM, MicroSD (max. 32GB expansion) |
| Operativno okruženje | -20°C do 50°C |
| Skladišno okruženje | -20°C do 70°C |
| Vlažnost | 5% RH to 95% RH (non-condensing) |
| Mehanička otpornost | 1.5m pad na čvrsti beton |
| Zaštita kućišta | IP65, IEC compliance |
| ESD | ±15kV air discharge, ±8kV direct discharge, ±8kV indirect discharge |
| SDK | Software Development Kit |
| Language | Java |
| Environment | Android Studio, Eclipse |
| WWAN | WCDMA (850/1900/2100MHz) GSM/GPRS/Edge 850/900/1800/1900MHz |
| WLAN | IEEE 802.11 b/g/n |
| WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
| GPS | GPS (embedded A-GPS), accuracy of 5 m |
| 1D barkod | 1D laser engine, Honeywell N431x Symbologies: All major 1D barcodes |
| 2D barkod | 2D CMOS Imager, Honeywell N6603 Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal etc. |
| Kamera | 5.0 megapixel, rear 2.0 megapixel, front |

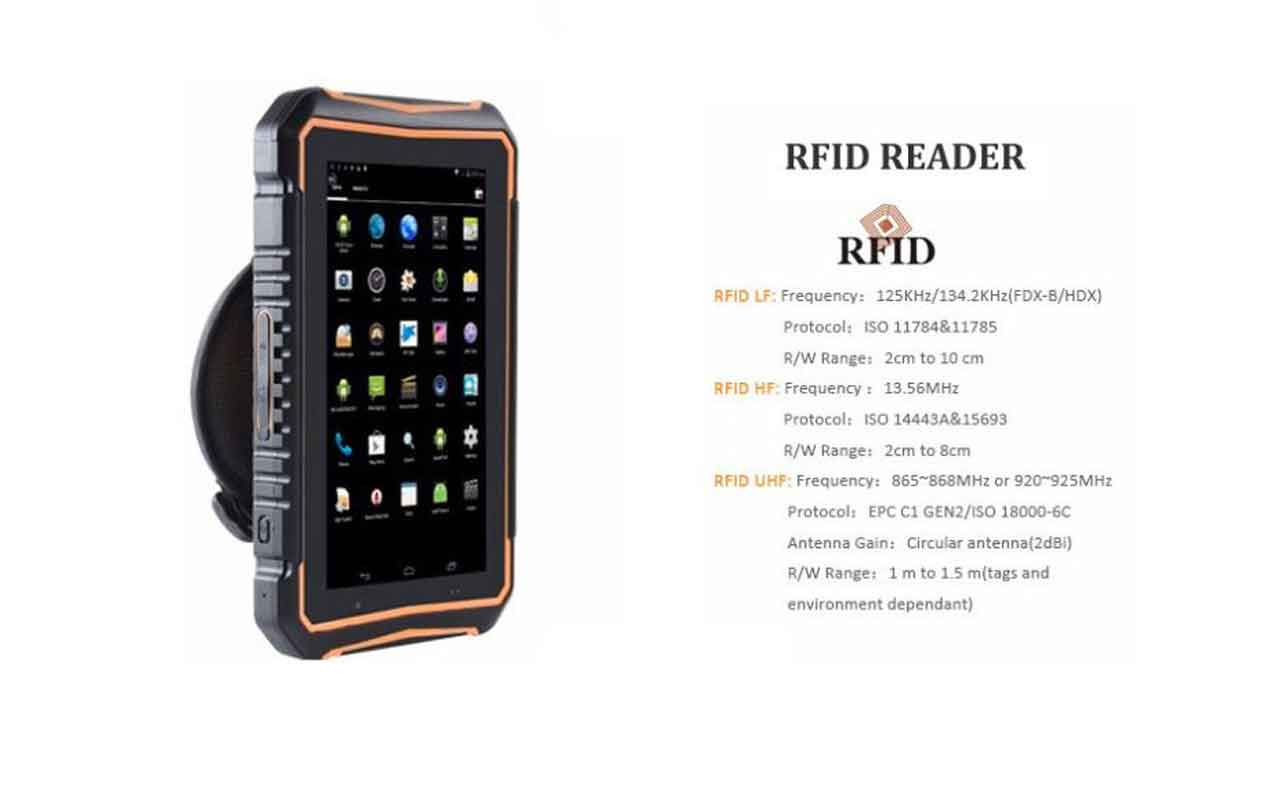

| LF RFID reader | Frequency: 125KHz/134.2KHz(FDX-B/HDX) Protocol: ISO 11784&11785 R/W range: 2cm to 10 cm |
| HF RFID reader | Frequency: 13.56MHz Protocol: ISO 14443A&15693 R/W range: 2cm to 8cm |
| UHF RFID reader | Frequency: 865~868MHz or 920~925MHz Protocol: EPC C1 GEN2/ISO 18000-6C Antenna Gain: Circular antenna(2dBi) R/W range: 1 m to 1.5 m (tags and environment dependant) |
| Active 2.45GHz | Read range: more than 200 m |
| 433 MHz | Read range: more than 200 m |
| ZigBee reader | Protocol: IEEE 802.15.4 Reading range: 100m to 200m |
| Fingerprint reader (opcionalno) | Sensor: TCS1SM Sensor type: capacitive, area sensor Resolution: 508 DPI Performance: FRR < 0.008%, FAR < 0.005% Capacity: 1000 |
| PSAM security (opcionalno) | Protocol: ISO 7816 Baudrate: 9600, 19200, 38400, 43000, 56000, 57600, 115200 Slot: 2 slots (maximum) |
| Accessories | Power supply Lithium polymer battery DC charging cable USB data cable Magnetic charging cable (optional) |
